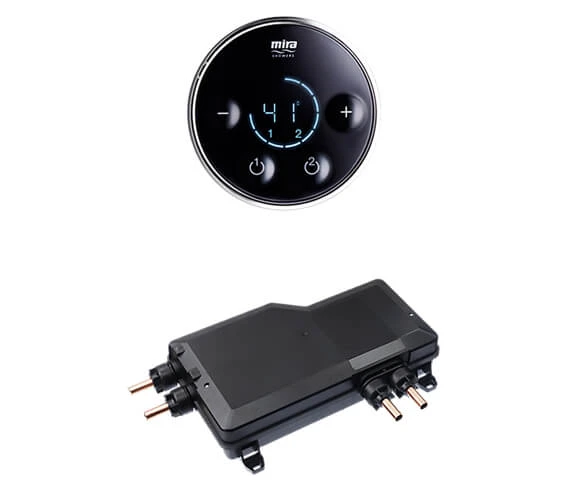

Mira Platinium Dual Shower Valve And Controller Black

Mira Platinium Dual Shower Valve and Controller is a wireless unit that allows excellent control. The High Pressure/Combi Boiler and Pumped for gravity offers a precise flow and temperature control with the temperature setting assuring safe showering. A touch button controls the temperature while the controller allows easy and fine-tune of flow. This WRAS and KIWA UK approved product conserves water use and saves battery life by dimming the display, and its thermostatic technology assures peace of mind. The minimum required pressure for combi boiler is 5.0 bar and maximum is 10 bar.

• Wireless Dual Valve and Controller.
• Choice of fitting available: High Pressure/Combi Boiler and Pumped for gravity [Optional].
• Precise flow and temperature control.
• Maximum temperature setting ensures safe showering.
• Adjustment of temperature at a touch of a button.
• The controller allows easy and fine-tunes flow.
• Warm-Up mode – Pauses at an ideal temperature.
• It conserves water use and saves battery life by dimming the display.
• Turn your shower on before you get in with an optional secondary controller, Usable from up to 10 meters away.
• Optional bath fill remembers your ideal temperature and depth.
• Automatic shutdown after reaching a specific temperature.
• Inlet connections: 15mm Push-fit (supplied) or 15mm compression.
• Outlet connection: 15mm Push-fit (supplied).
• Supply voltage: 230v +10%.
• Supply range: 3 amp.
• Cold water range: 1°C – 20°C.

• Hot water range: 55°C – 65°C.
• Required pressure for combi boiler: Minimum 5.0 bar and Maximum 10.0 bar.
• Required pressure for Pumped for Gravity: Minimum 0.01 bar and Maximum 1.0 bar.
• Flow rate: 16 Litre/minute at 1 bar.
• Separate temperature and flow control.
• Programmable functions – Warm-up mode, Shower timer, Eco setting and clock display.
• Large long, life Replaceable filters.
• Thermostatic temperature stability with digital intelligence.
• Water Entry Points – Back, Rear Fed; Top, Ceiling Fed.
• Temperature stability: +/- 1°C.
• Factory set to safe max temp: Factory set at 45°C.
• WRAS and KIWA UK approved product.

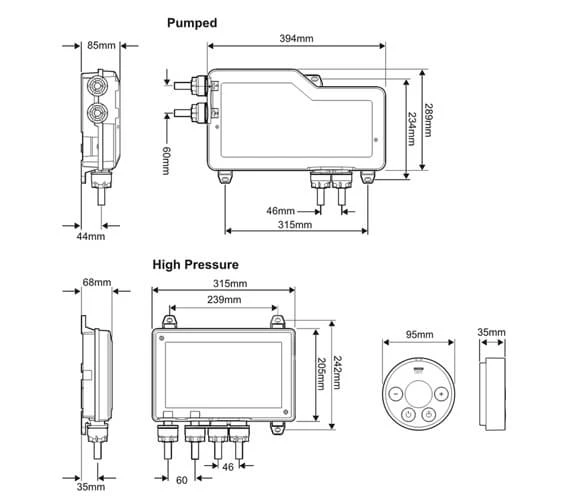

• Refer to the Technical drawing for more technical details.
• Download the Installation Guide PDF File from the Additional Info Section.
• 5 Years warranty from Mira against manufacturing defects.
