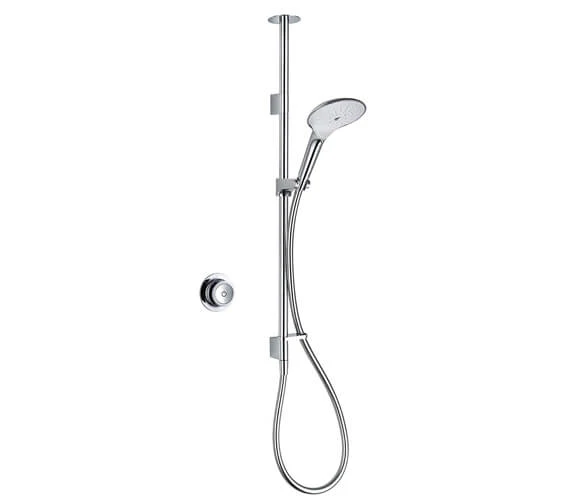

Mira Mode Thermostatic Digital Mixer Shower Chrome

Mira Mode Thermostatic Digital Mixer Shower.

• Rear and ceiling fed available [Optional].
• Available as High pressure with a combi boiler or Pumped for gravity [Optional].
• It comes in a Chrome finish.

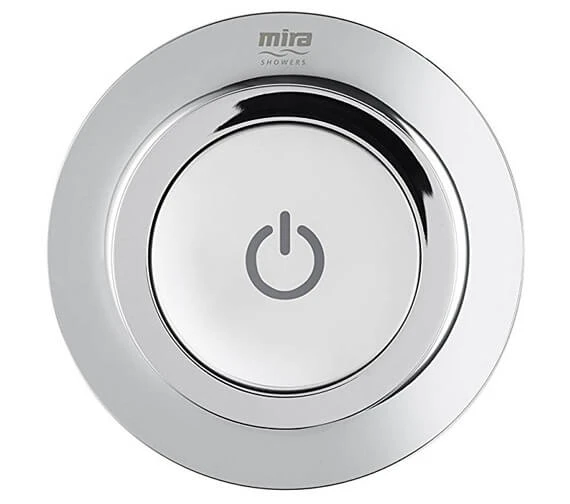

• Indicator light signals when the shower has reached the desired temperature.
• Maximum temperature setting for increased safety.
• Replaceable check valve and filters.
• Supplied with push-fit isolators.
• Personalise showering settings using the Mira Mode app.
• Water Entry Points – Back for Rear Fed and Top for Ceiling Fed.

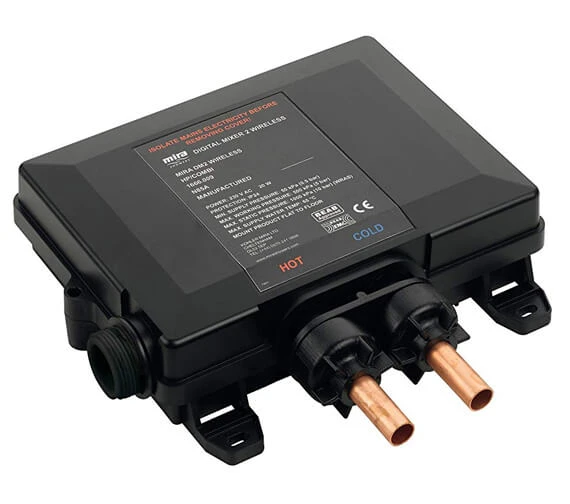

• Data Connection to Digital Mixer: Low voltage data cable.
• Inlet Connections: 15mm push-fit (supplied) or 15mm compression.
• Outlet connection: 15mm push-fit (supplied).
• Supply voltage: 230v +10%.
• Supply rating: 3 amp.
• Temperature stability: ± 1°C.

• Phased shutdown: Yes.
• Factory set to safe max temp: Factory set at 45° C.

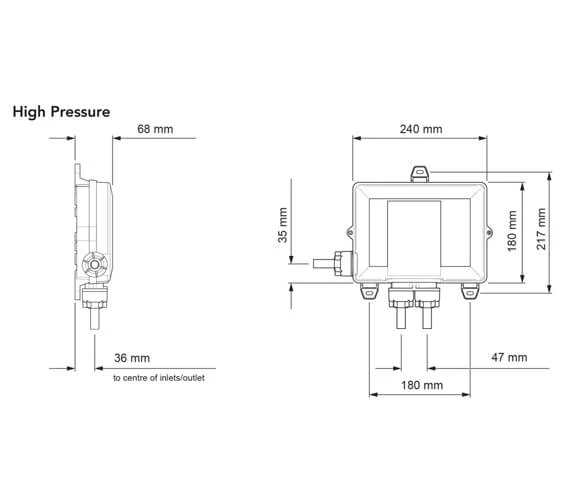

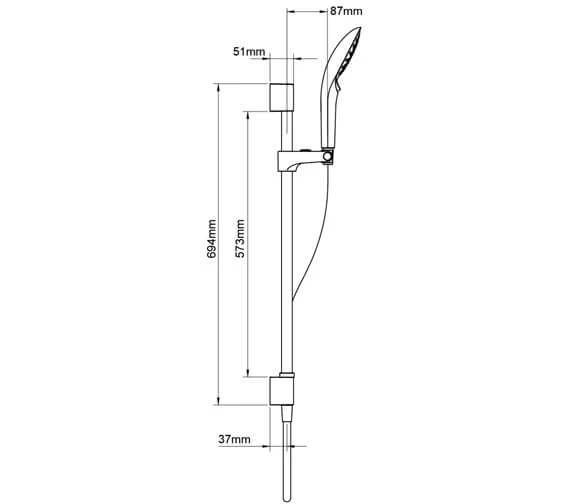

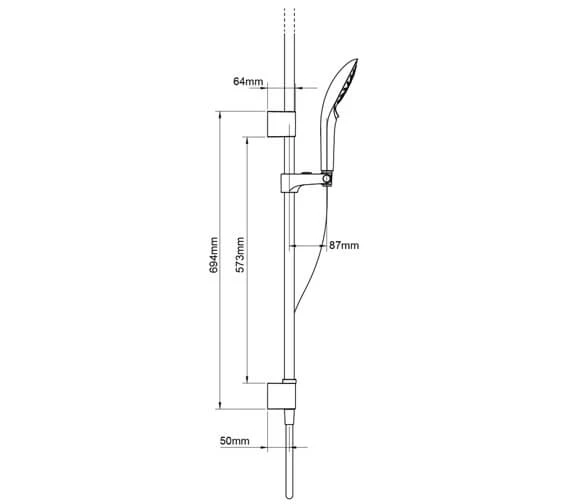

• Refer to the technical drawing for more size details.
• Download the Installation Instruction And User Guide PDF File from the Additional Info Section.
• Maintained pressure For High Pressure/Combi Boiler:.
• Minimum Pressure: 0.5 bar (5-meter head).
• Maximum pressure: 5.0 bar (50-meter head).
• Maximum static pressure: 10.0 bar (100-meter head).
• Flow rate: up to 16 l/min at 1 bar.

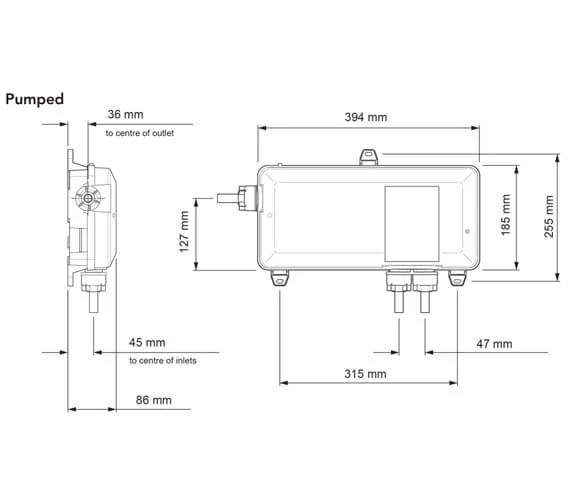

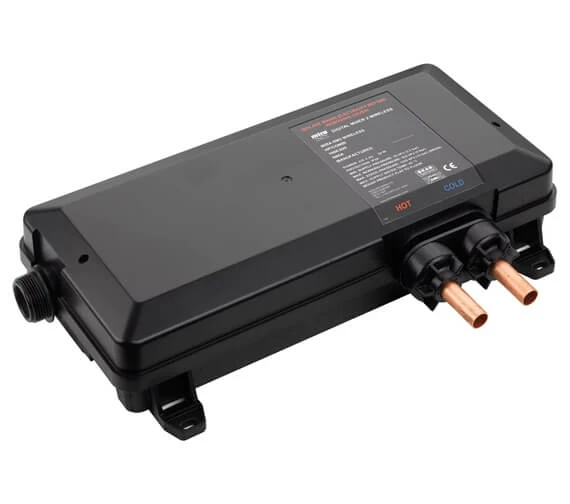

• Maintained pressure For Pumped:.
• Minimum Pressure: 0.01 bar (10cm head).
• Maximum pressure: Pumped: 1.0 bar (10-meter head).
• Maximum static pressure: Pumped: 1.0 bar (10-meter head).
• Flow rate: up to 16 1/min at 0.1 bar.
