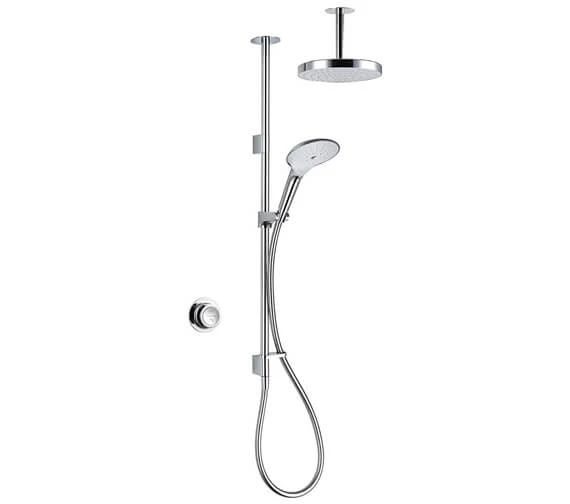

Mira Mode Dual Rear Fed Digital Mixer Shower.
- ✔Thermostatic temperature stability with digital intelligence

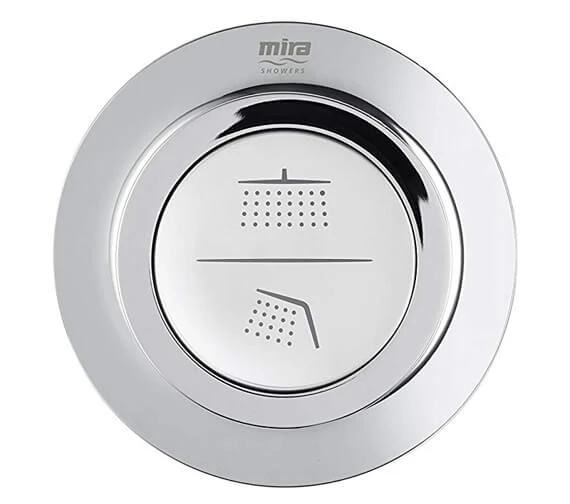

- ✔Rotary temperature control dial
- ✔KIWA UK and WRAS Approved
- ✔Five years warranty from Mira against manufacturing defects
- Available in different variants: Dual Rear Fed and Dual Ceiling Fed – [Optional].
- Available as High pressure with a Combi Boiler and Pumped For Gravity – [Optional].
- It comes in a chrome finish.
- Indicator light signals when the shower has reached the desired temperature.
- Maximum temperature setting for increased safety.
- Replaceable check valve and filters.
- Supplied with push-fit isolators.
- Personalise showering settings using the Mira Mode app.

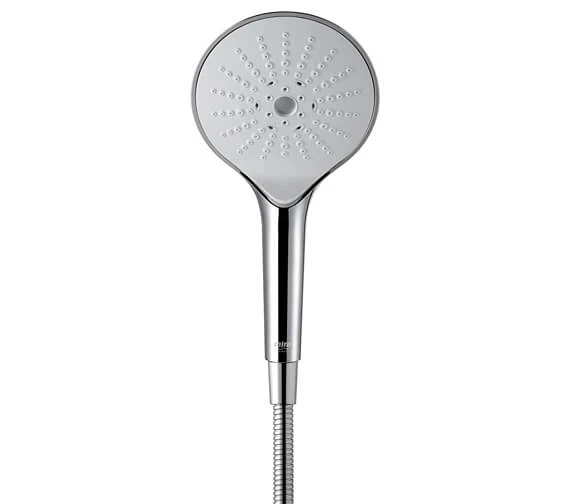

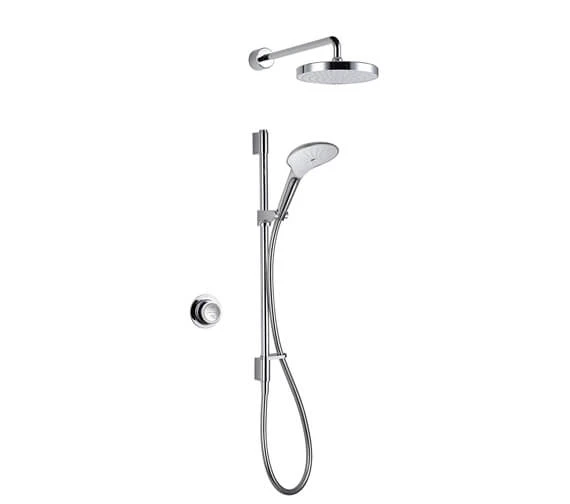

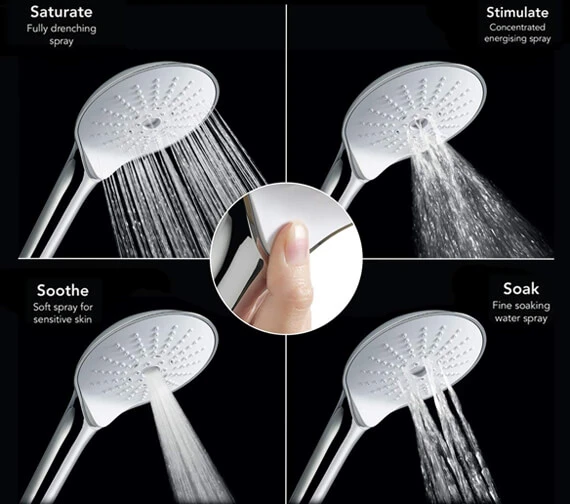

- Includes 200mm deluge shower head and Mira switch four unique spray mode hand shower.
- Water Entry Points – Back for Rear Fed and Top for Ceiling Fed.
- Data Connection to Digital Mixer: Low voltage data cable.
- Inlet Connections: 15mm push-fit (supplied) or 15mm compression.
- Outlet connection: 15mm push-fit (supplied).
- Supply voltage: 230v +10%.
- Supply rating: 3 amp.
- Temperature stability: ± 1°C.
- Phased shutdown: Yes.
- Factory set to safe max temp: Factory set at 45° C.

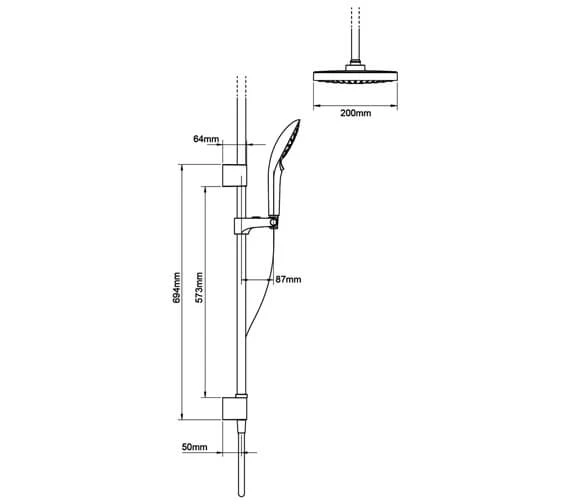

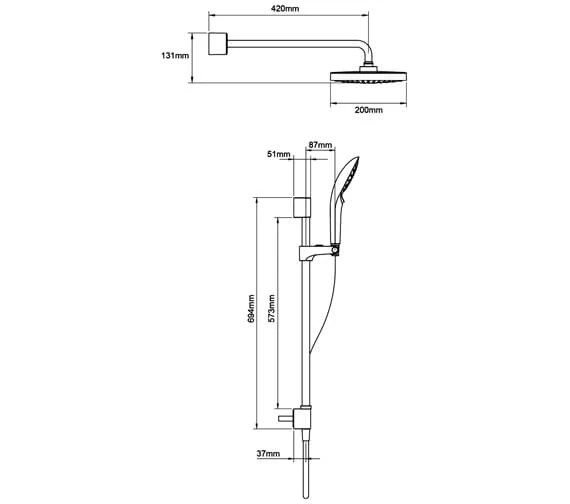

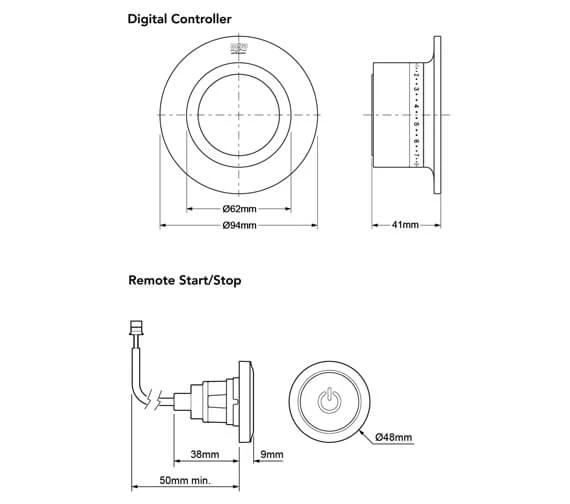

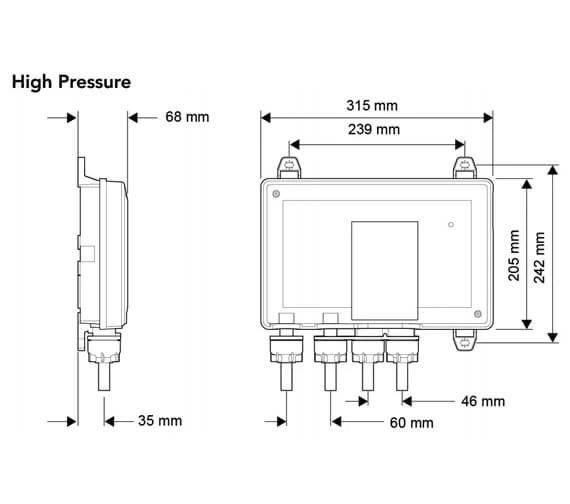

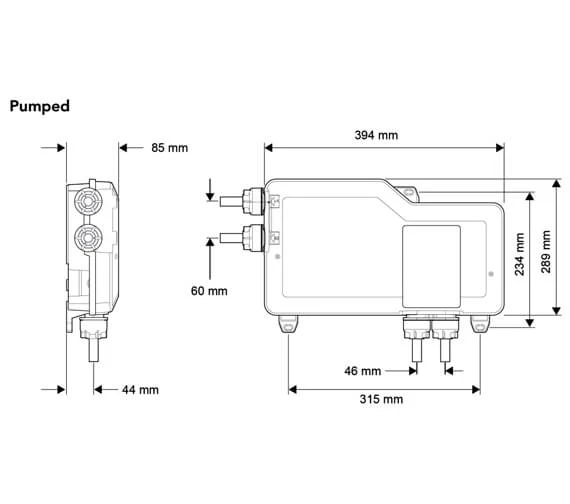

- Refer to the technical drawing for more size details.
- Download Installation Instruction and User Guide, Shower Fitting User Guide PDF File from the Additional Info Section.
- Maintained pressure For High Pressure/Combi Boiler:.
- Minimum Pressure: 0. Maintained 5 bar (5-meter head).
- Maximum pressure: 5.0 bar (50-meter head).
- Maximum static pressure: 10.0 bar (100-meter head).
- Flow rate: up to 16 l/min at 1 bar.
- Maintained pressure For Pumped:.
- Minimum Pressure: 0.01 bar (10cm head).
- Maximum pressure: Pumped: 1.0 bar (10-meter head).
- Maximum static pressure: Pumped: 1.0 bar (10-meter head).
- Flow rate: up to 16 1/min at 0.1 bar.
