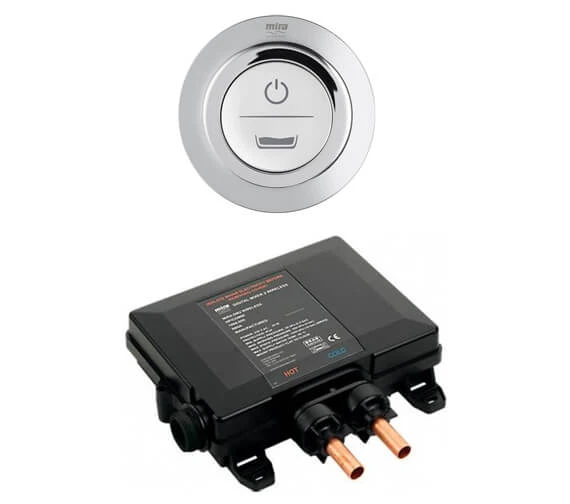

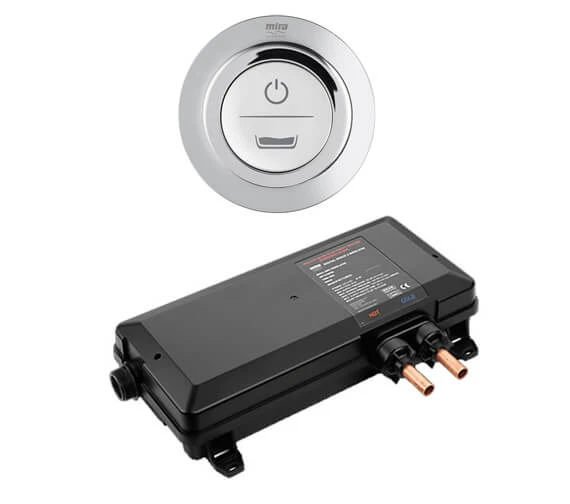

Mira Mode Digital Bath Filler Valve Chrome

Mira Mode Digital Bath Filler Valve is a solid construction for use in bath filling. Suitable for single outlet use, this unit will serve you well over the years. It can be purchased as High pressure/combi boiler or Pumped for gravity mains water systems and allows you the thrill of a fast-fill bath with up to 15 litres per minute. The valve is designed with thermostatic temperature stability with digital intelligence, stylish LED indicator lights on the shower controller, replaceable check valve and filters, push-fit isolators, maximum temperature setting, control dial and much more. KIWA UK and WRAS Approved, this simple installation comes with five years warranty.

• Available as High pressure/combi boiler or Pumped for gravity mains water systems [Optional].
• Suitable for single-outlet use.
• Enjoy a fast-fill bath with up to 15 litres per minute.
• Chrome finish with stylish LED indicator lights on the shower controller.
• Indicator light signals when bath fill has reached the desired temperature.
• Replaceable check valve and filters.
• Download the Mira Mode app to set your ideal temperature and depth; you can also add up to 10 bath-fill presets.
• Maximum temperature setting for increased safety.
• A simple push-button wired controller makes it easy to use for all the family.
• Additional on/off remote control can be placed outside the shower.
• Rotary temperature control dial.
• Inlet Connections: 15mm Push-Fit (supplied) or 15mm compression.
• Outlet connection: 15mm push-fit (supplied).
• Data Connection to Digital Mixer: Low Voltage Data Cable.
• Supply voltage: 230v +10%.
• Supply rating: 3 amp.

• Temperature stability: 1°C.
• Phased shutdown: Yes.
• Factory set to safe max temp: Factory set at 45°C.

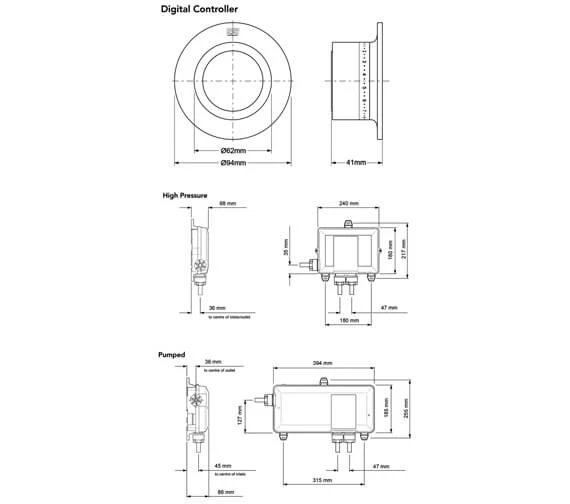

• Refer to the technical drawing for more size details.
• Download the installation instruction PDF from the Additional Info section.
• Maintained pressures For High pressure/Combi boiler:.
• Minimum Pressure: 0.5 bar (5-meter head).
• Maximum pressure: 5.0 bar (50-meter head).
• Maximum static pressure: 10.0 bar (100-meter head).
• Flow rate: up to 16 l/min at 1 bar.
• Maintained pressure For Pumped:.
• Minimum Pressure: 0.01 bar (10cm head).
• Maximum pressure: Pumped: 1.0 bar (10-meter head).
• Maximum static pressure: Pumped: 1.0 bar (10-meter head).
• Flow rate: up to 16 1/min at 0.1 bar.
