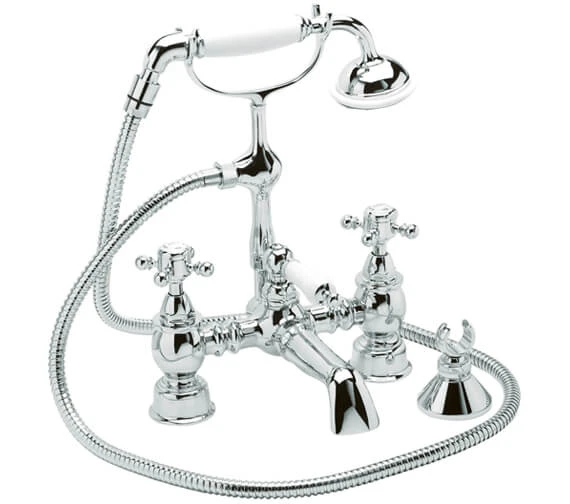

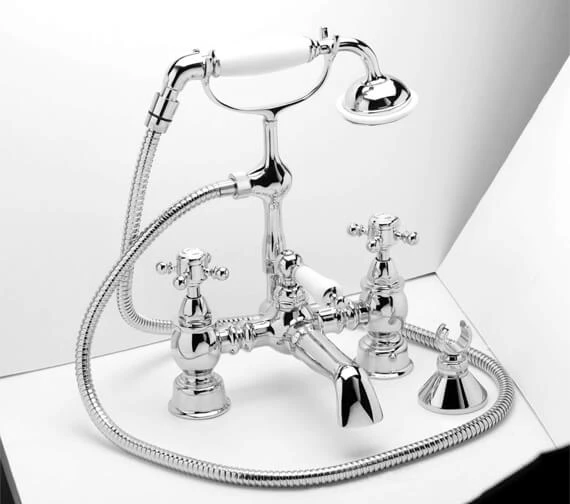

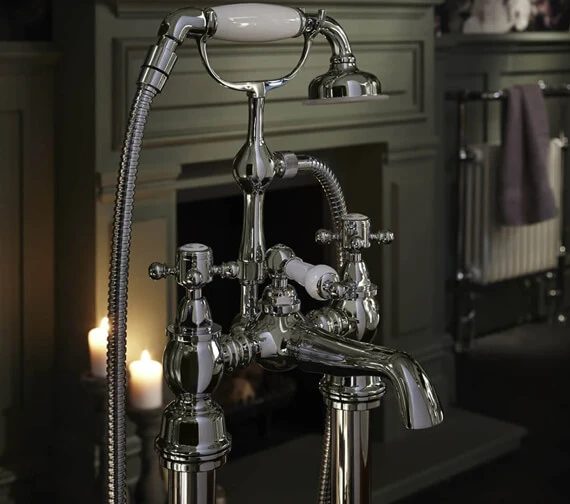

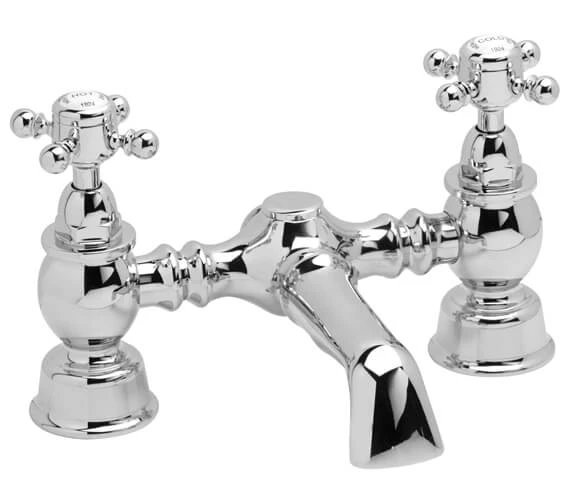

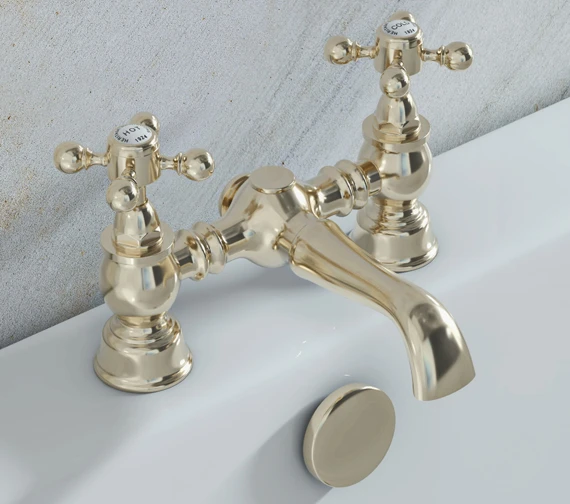

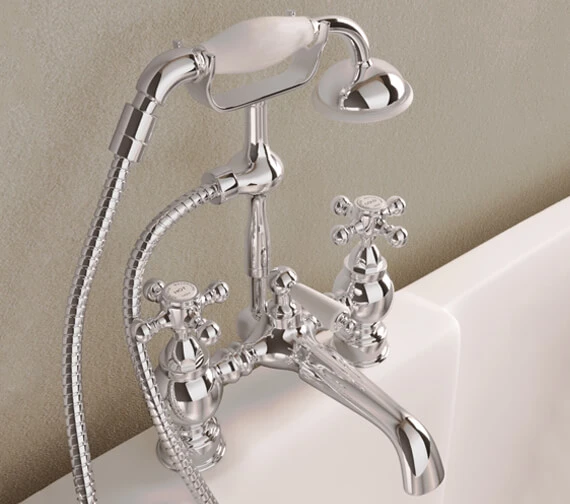

Heritage Hartlebury Deck Mounted Bath Mixer Tap

Heritage Hartlebury Deck Mounted Bath Mixer Tap is a great way to enjoy a long bath. The mixer is included with or without a shower kit and comes to you with a choice of chrome and vintage gold for long-lasting shine. It works reliably with a ceramic disc cartridge, while the exterior has a traditional design to bring a classy and elegant touch to your bathroom space. Complete with crosshead handles, it can be deck mounted or used with standpipes on a freestanding bath. Manufactured using brass material, it needs at least 0.2 bar water pressure for smooth working in the bathtub.

• Available in 2 variations – with shower kit, without shower kit.
• Single flow.
• Manual valve.
• Traditional design.
• Crosshead handles.
• It can be deck mounted or used with standpipes on a freestanding bath.
• Compatible with low-pressure water systems, optimised for the UK market.
• Minimum 0.2 bar water pressure required.
• The maximum water pressure is 5.0 bar.
• The maximum hot water temperature is 60 degrees. C.
• The image shown is for illustration purposes only.
• Download the Installation Instruction PDF File from the Additional Info section below.
• Refer to the technical diagram for the complete technical dimensions.

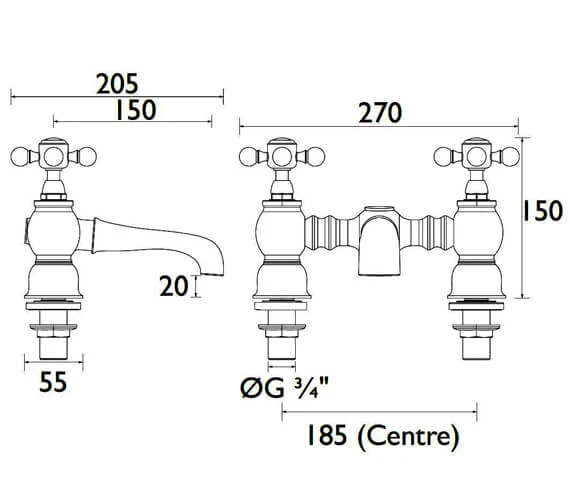

• Details for tap without shower kit:.
• Size: Width 270mmx Depth 205mm x Height 150mm.
• Spout reach: 150mm.
• Base to spout: 20mm.
• Inlet centre: 185mm.

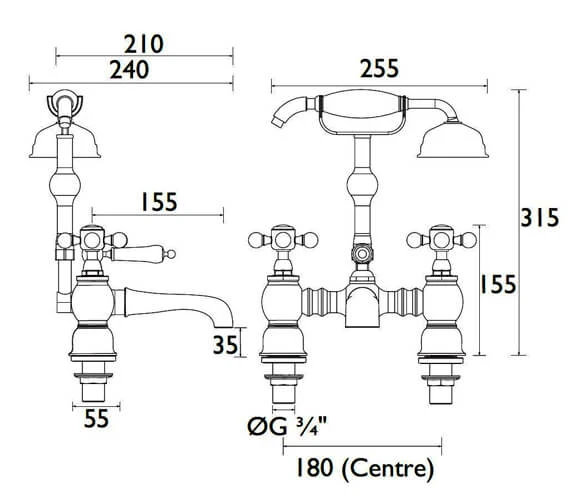

• Details for tap with shower kit:.
• Size: Depth 240mm x Height 155mm.
• Overall height: 315mm.
• Spout reach: 155mm.
• Base to spout: 35mm.
• Inlet centre: 180mm.
• Hose length: 1500mm.
