Bristan Quest Chrome Bath Mixer Tap

Bristan proudly introduces an eye-catching, glamorous bathroom splendour, in the form of a beautiful Bath Mixer Tap, from its Quest series. Its bridge-like profile features short levers over a pillar-like base and a central triangular spout. Complemented with a gleaming chrome finish, this strong brassware will delight you with a long-lasting performance. The efficacious bath mixer comes with metal handles and will give you satisfying and convenient use for straight baths, . Quarter turn ceramic disc valves and easy-to-use features ensure its effective performance. Bristan offers a 10-year guarantee with this masterpiece in chrome.

• Available in different variations: Tap Only And Tap With Round Handset.
• Deck mounted installation.
• Handle style: lever.
• Flow type: single.
• Number of tap holes: 2.
• Maximum static pressure: 10.
• Base To Spout: 50mm.
• Height: 120mm.
• Inlet centre: 180mm.
• Suitable for all plumbing systems.
• Connection inlet: 3/4 inch BSP.
• Suitable for all plumbing systems.
• Metal back nuts for added durability.
• Easy-to-use metal handles.
• Download the Installation Instruction PDF File From The Additional Info Section.
• Refer technical diagram for technical details.

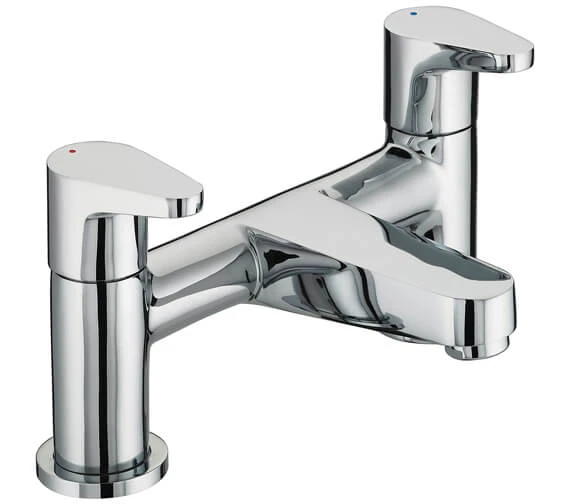

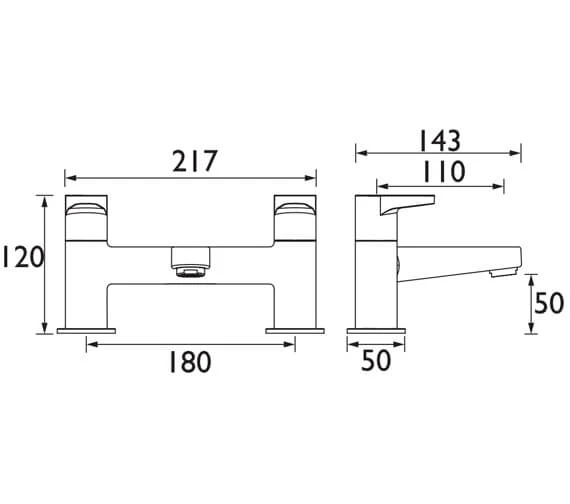

• Features Of Tap Only :.
• Width : 217mm.

• Depth: 143mm.
• Spout Reach: 110mm.
• Handle style: lever.
• Maximum hot water temperature: 65°C.
• Connection outlet: M24 flow straightener.
• Valve cartridge type: 3/4 inch quarter turn ceramic disc valve.
• Minimum dynamic pressure: 0.2 bar.
• Maximum dynamic pressure: 5.0 bar.

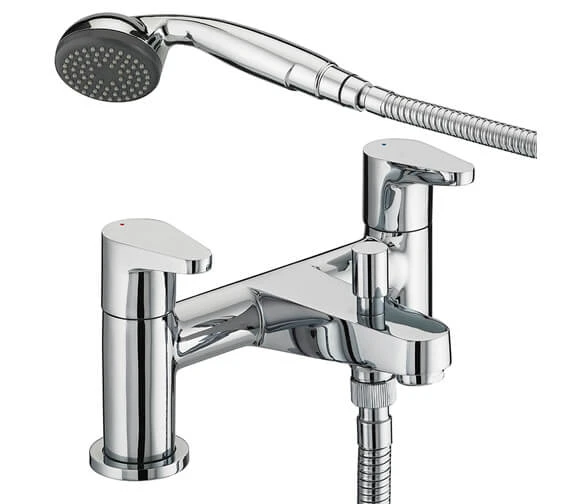

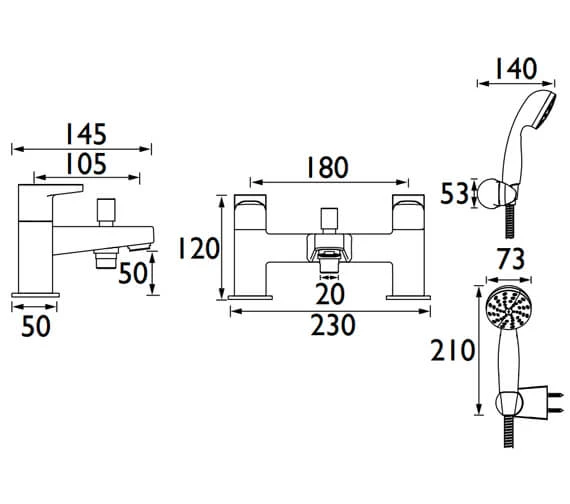

• Features Of Tap With Round Handset :.
• Width : 230mm.
• Depth: 145mm.
• Spout Reach: 105mm.
• Handle style: paddle.
• Connection outlet: G 1/2 inch.
• Valve cartridge type: 3/4 inch ceramic disc valves.
• Requires a minimum of 0.3 bar to a maximum of 8.0 bar of water pressure.
• Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket.
