Moulded from top quality brass, in shape influenced by pure geometry, this Quadrato Bath Mixer Tap from Bristan is a proud possession for any homeowner. The modern styled beauty features a central spout and lever handles for hot and cold water feeds. It comes in 2 variations. This deck-mounted tap comes with a glinting chrome finish not only exudes opulence to your bath but also offers comfortable bathing sessions. Complete with metal handles, the user-friendly product performs nicely with a minimum 0.3 bar and maximum 5.0 bar water pressure. It carries a ten-year guarantee from the manufacturer.
- ✔Manufactured using high-quality brass material
- ✔Valve cartridge type: 3/4 inch ceramic disc valves
- ✔Ten-year guarantee against any manufacturer defect
- Available in 2 variations: Tap Only And Tap With Stick Handset.
- It comes in an attractive chrome finish.
- Handle type: lever.
- Flow type: single.
- Number of tap holes: 2.
- Suitable for all plumbing systems.
- Maximum hot water temperature: 65°C.
- Maximum static pressure: 10.
- Metal back nuts for added durability.
- Download the Installation Instruction PDF File From The Additional Info Section.

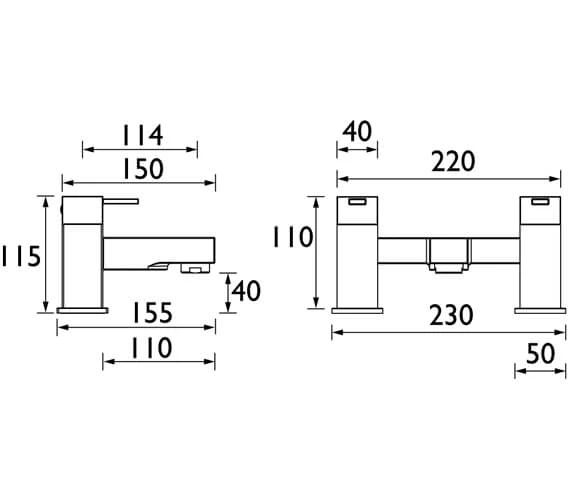

- Refer to the technical diagram for the technical dimension.

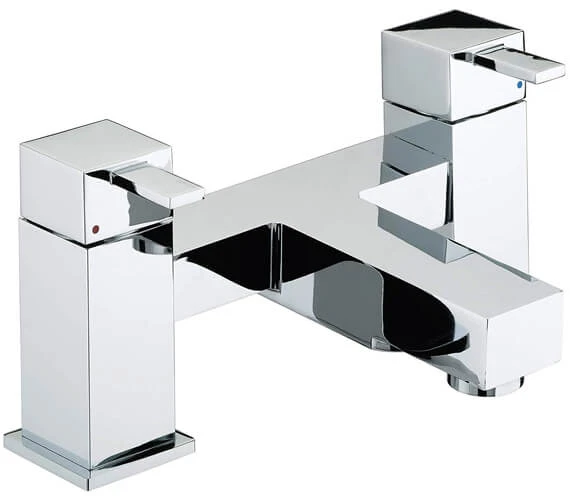

- Features Of Tap Only :.
- Height: 115mm.
- Spout Reach: 114mm.
- Width : 230mm.
- Depth: 155mm.
- Base To Spout: 40mm.
- Handle type: lever.
- Flow type: single.
- Connection outlet: M28 flow straightener.
- Long life and easy to use 1/4 turn ceramic disc valves.
- Minimum working pressure of 0.3 bar.
- Requires minimum 0.3 bar water pressure.

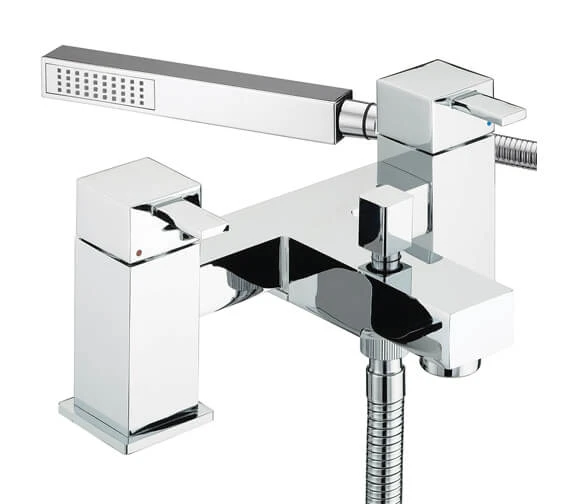

- Features Of Tap With Stick Handset :.
- Height: 115mm.
- Spout Reach: 110mm.
- Base To Spout: 36mm.
- Inlet Centre: 180mm.
- Deck mounted installation.
- Handle type: paddle.
- Requires a minimum of 0.5 bar to a maximum of 5.0 bar of water pressure.
- Height of tap: 115mm.
- Centre of the inlet to centre of outlet: 110mm.
- Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket.
