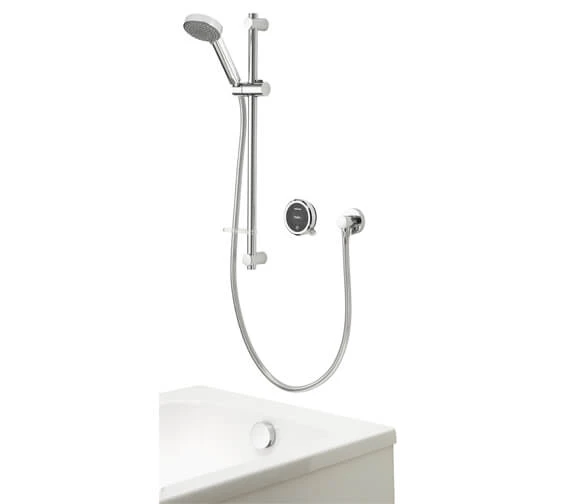

Aqualisa Quartz Touch Slide Rail Kit With Digital Concealed Valve And Bath Filler

This sleek Aqualisa Quartz Touch Slide Rail Kit With Digital Concealed Valve And Bath Filler is modern in design and understated in presence. The dual concealed digital valve can be purchased in one of 2 variations-with High pressure combi system or gravity pumped. The product includes bath filler, four-mode shower handset, hose and optional Eco mode on the Smart valve, which can be selected for water saving up to 33%. The valve features a thermostatic control, which allows you to control the temperature of the water at an affordable price.

• Available in 2 variants: HP – Combi, Gravity Pump.

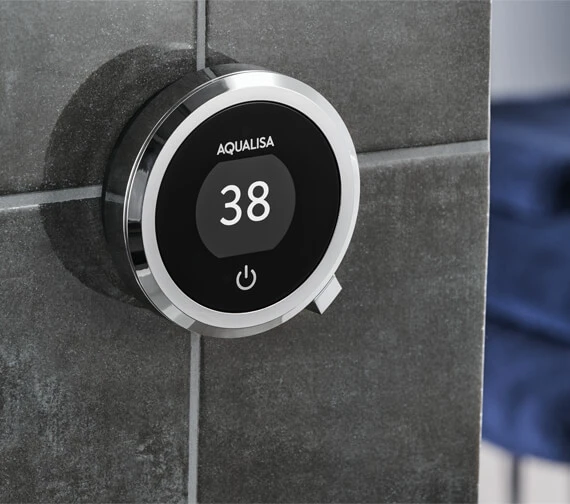

• Dual outlet Concealed digital shower valve.
• Supplied with bath filler.

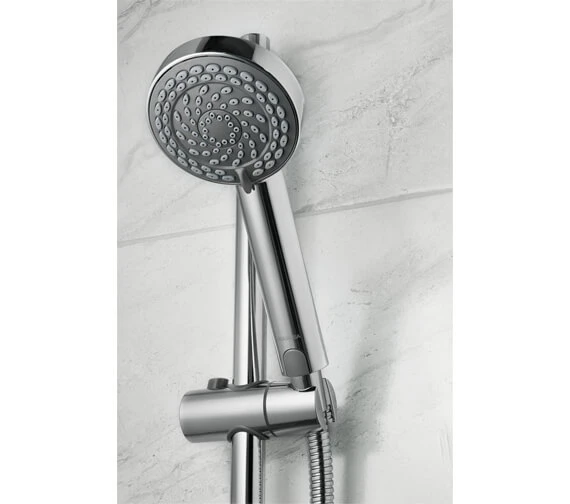

• 105mm 4 mode shower handset (Inner, Middle, Outer, Eco).
• 1500mm metal hose included.
• WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
• Glide temperature control for simplistic use.
• Auto wake up when you approach the controller.
• Optional wireless remote.
• Rail length: Height 700mm x Width 25mm.
• Controller/Valve Unit Size: 98 x 34 x 98mm [Width x Depth x Height].
• Electrical requirements: 240v.
• Inlet and Outlet fitting connections: 15mm push-fit.

• Water supply temp: 5°C min / 65°C max.
• 240v Electrical requirements.
• Cable and water entry point: Rear.

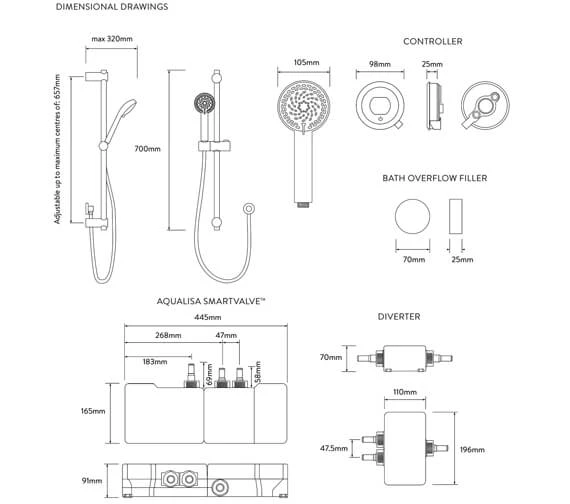

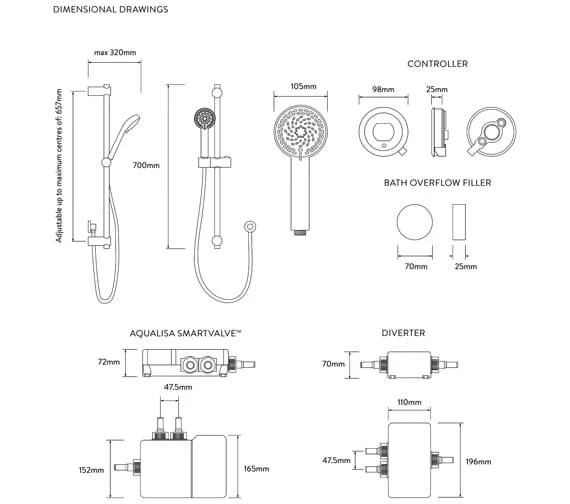

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
