Aqualisa Quartz Touch Digital Concealed Shower Valve With Kit And Ceiling Head

Aqualisa Quartz Touch Digital Concealed Shower Valve With Kit And Ceiling Head come in High pressure combi system, or gravity pumped models. Supplied with a 230mm round fixed ceiling head, 105mm 4 mode shower handset, and 1500mm metal hose, the Smart valve is WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely. It offers safe and satisfactory thermostatic showering with adjustable maximum temperature and glide temperature control for simplistic and stress-free use. Optional wireless remote and water-saving features add value.

• Available in 2 variants: HP – Combi, Gravity Pump.
• Dual outlet Concealed digital shower valve.

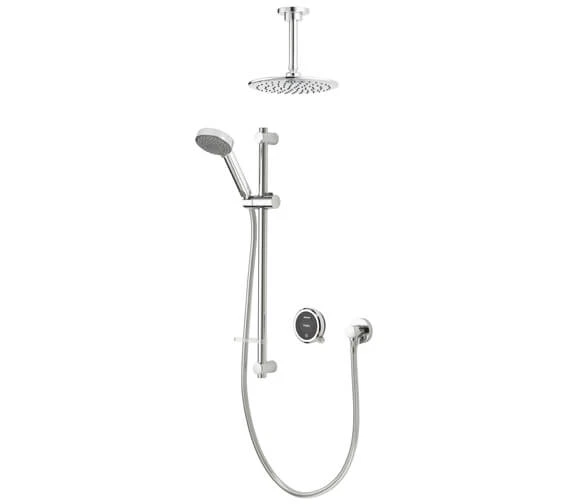

• Supplied with 230mm round fixed ceiling head.

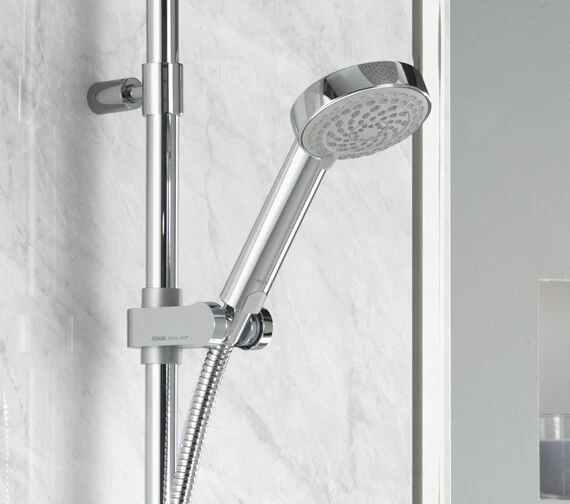

• 105mm 4 mode shower handset (Inner, Middle, Outer, Eco).
• 1500mm metal hose included.
• WiFi, Mobile App, Google Home & Amazon Alexa enabled you to control your shower remotely.
• Glide temperature control for simplistic use.
• Optional wireless remote.
• Rail length: Height 700mm x Width 25mm.
• Controller/valve unit Size: 98 x 34 x 98mm [Width x Depth x Height].
• Electrical requirements: 240v.
• Inlet and Outlet fitting connections: 15mm push-fit.
• Water supply temp: 5°C min / 65°C max.

• 240v Electrical requirements.
• Cable and water entry point: Rear.

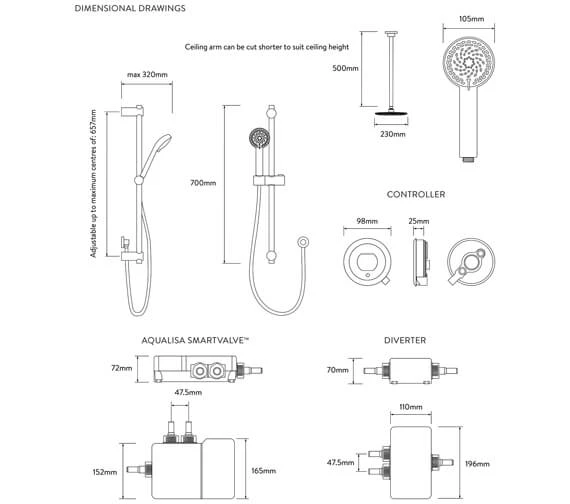

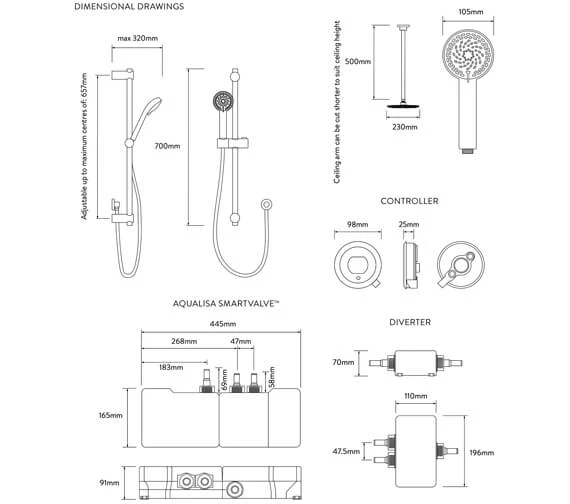

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
