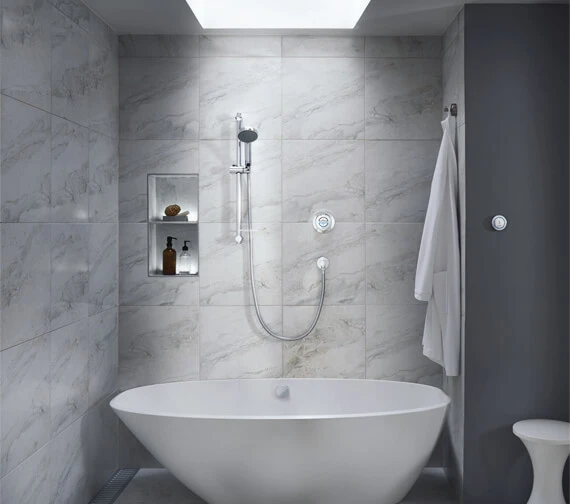

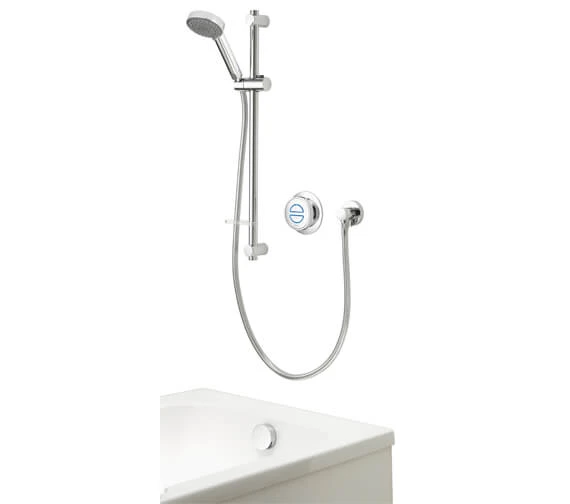

Aqualisa Quartz Classic Smart Concealed Valve With Riser Rail And Bath Filler

For spectacular showering moments, make the addition of this Aqualisa Quartz Classic Smart Concealed Valve With Riser Rail And Bath Filler to your luxurious bathroom. The Dual outlet concealed digital shower valve can be purchased in 2 variations of High pressure combi system or gravity pumped. The set is thermostatically controlled and offers precise water and temperature flow throughout. This durable fixture is elegantly finished in chrome and can be fixed either horizontally or vertically. It is practical in use and is compatible with wired remote control. Moreover, it carries five years of guarantee for the valve and two years for the kit.

• Available in 2 variants: HP – Combi, Gravity Pump.

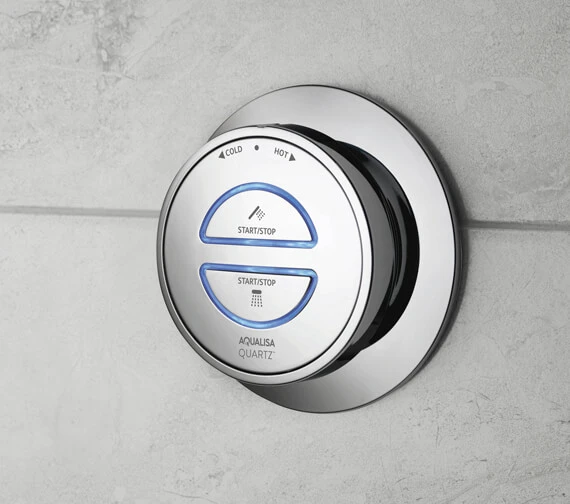

• Dual outlet concealed digital shower valve.
• WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
• Multiple showers can be controlled from 1 app.
• 1500mm Metal hose.
• Rail length: Height 700mm x Width 25mm.
• 105mm Harmony handset with four spray patterns (Inner, Middle, Outer, Eco).
• The shower head’s Eco-setting can produce water savings of up to 25% without compromising your showering experience.
• Compatible with wired remote control.
• Optional Eco mode on the Smart Valve, which can be selected for water saving up to 33%.
• Controller unit size: 120 x 40 x 120mm [Width x Depth x Height].
• Inlet and Outlet fitting connections: 15mm push-fit.
• Water supply temp: 5°C min / 65°C max.

• 240v Electrical requirements.
• Cable and water entry point: Rear.

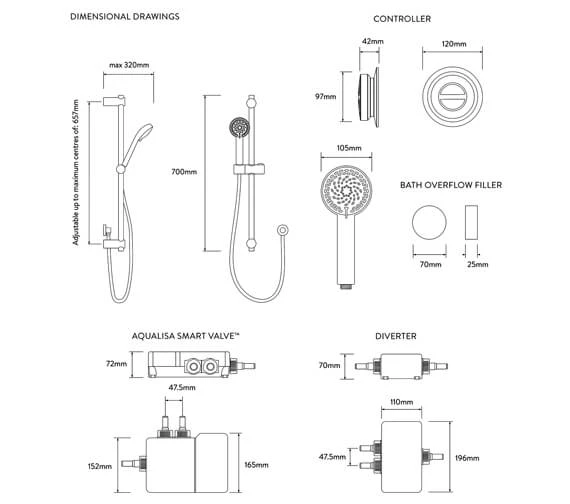

• Refer to the technical drawing for complete size details.
• Guarantee period: 5 years for the Valve and two years for kit.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
