Enjoy the ultimate showering experience by installing the Quartz Classic Smart Concealed Shower With Slide Rail Kit-an immaculate creation of Aqualisa. The modern-style kit is supplied with a 105mm Harmony handset with four spray patterns to make showering a pleasurable experience. Available with High pressure combi system or gravity pumped, the shower is Thermostatically controlled with a push-button one start control.
The rail kit, in exclusive finish, is made from superior-quality material and is a perfect blend of strength and splendour. It includes a Boost button for a powerful showering performance, an LED display to let you know your chosen temperature has been reached and is WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
- ✔Guarantee period: 5 years for the Valve and two years for kit
- ✔LED display to let you know your chosen temperature has been reached
- ✔Thermostatically controlled showering with push-button one-start control
- ✔Optional Eco mode on the Smart Valve, which can be selected for water saving up to 33%
- Available in 2 variants: HP – Combi, Gravity Pump.
- Boost button for a powerful showering performance.
- WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
- Multiple showers can be controlled from 1 app.
- Timer function in-app.
- Online water management dashboard.
- Supplied with 105mm Harmony handset with four spray patterns (Inner, middle, outer and eco).
- The shower head’s Eco-setting can produce water savings of up to 25% without compromising your showering experience.
- Compatible with wired remote control.
- 1500mm metal hose included.
- Rail length: Height 700mm x Width 25mm.
- Controller unit size: 120 x 40 x 120mm [Width x Depth x Height].
- Inlet and Outlet fitting connections: 15mm compression.
- Water supply temp: 5°C min / 65°C max.
- 240v Electrical requirements.
- Cable and water entry point: Rear.

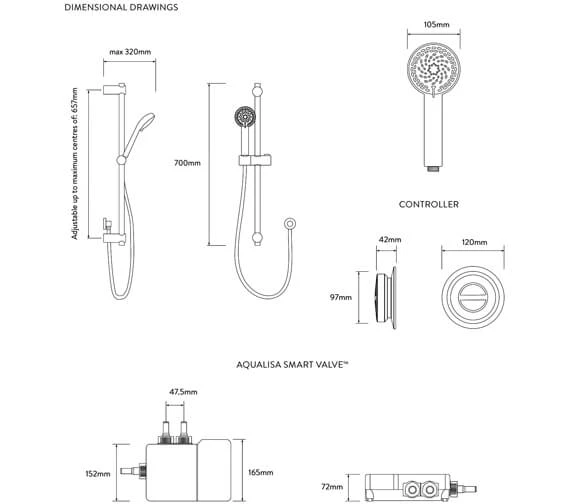

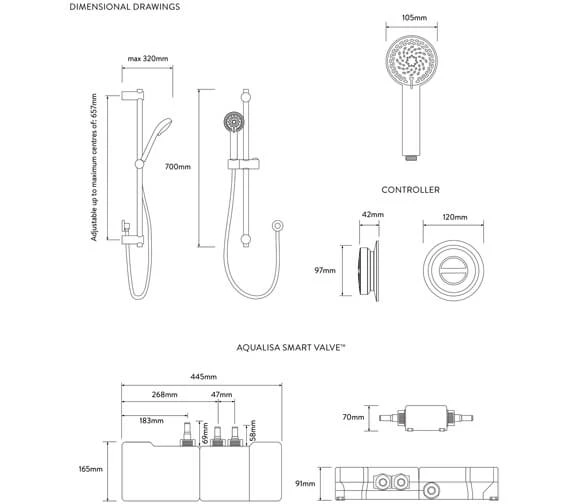

- Refer to the technical drawing for complete size details.
- Specifications for High-pressure combi system.
- Suitable to work with high-pressure water systems.
- Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
- Flow rates: 8-16 lpm.
- Specifications for Gravity Pumped.
- It comes with an integral pump.
- Suitable to work with low-pressure water systems.
- Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
- Flow rates: 10-16 lpm.
